How do I configure my Fan?

A fan can be controlled in many ways.

Fan Speed Control

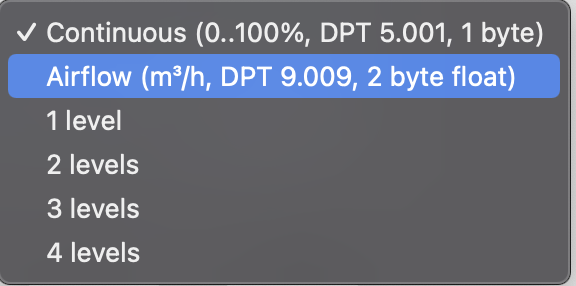

First the speed can be controller continuous, airflow or in upto 4 steps (levels)

When your Fan supports continuous (0-100%) it needs a 5.001 DataPointType listen and set address:

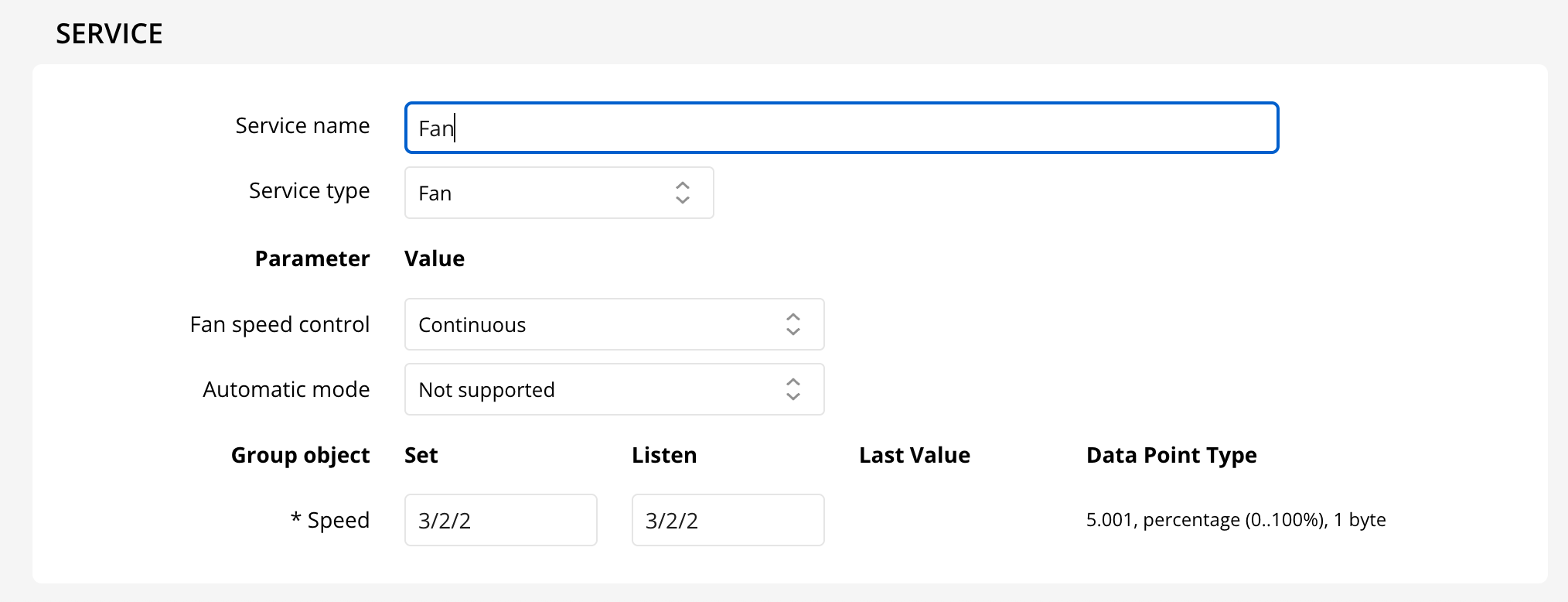

Continuous Fan Thinka configuration

Same for Airflow, you need a DPT 9.009 set and listen address. And you specify the minimum and maximum:

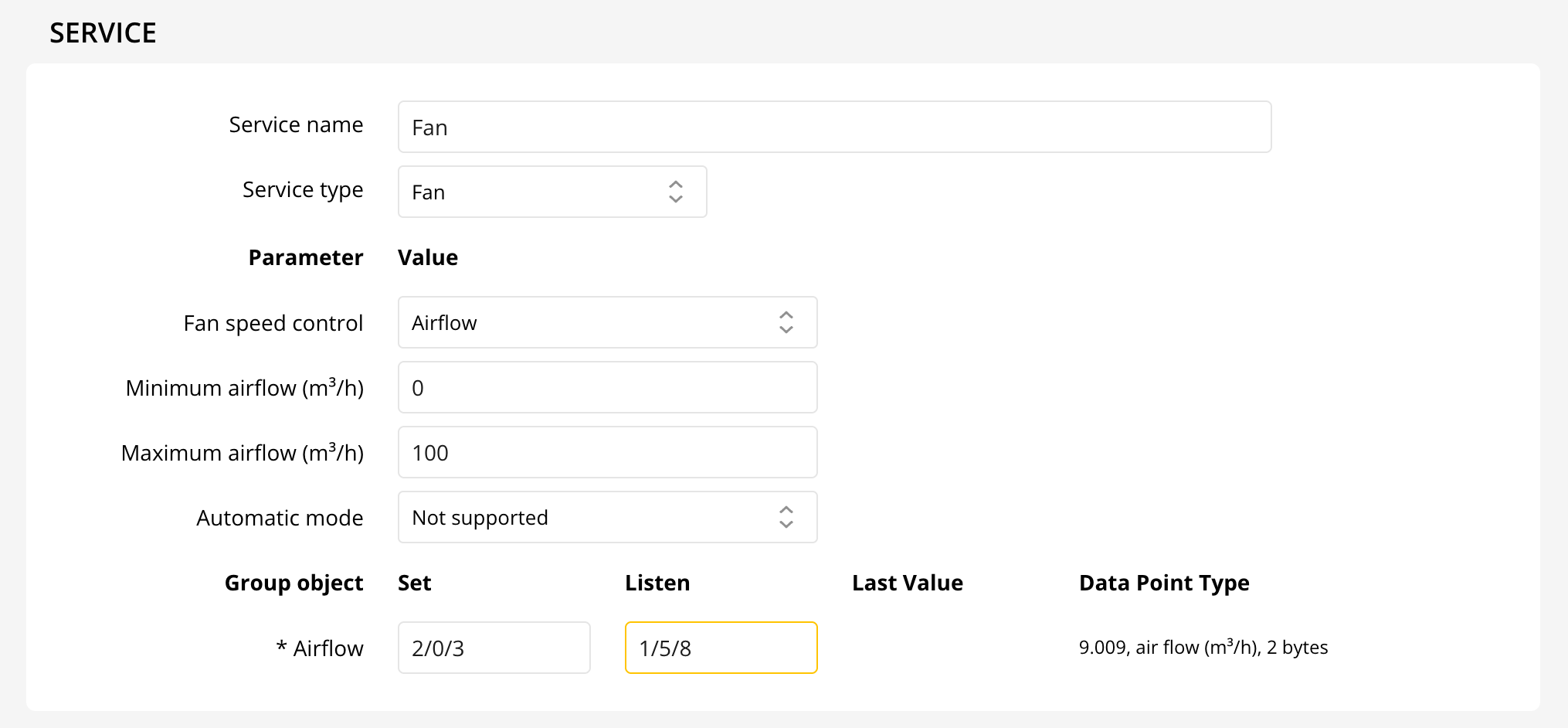

Airflow Fan Thinka configuration

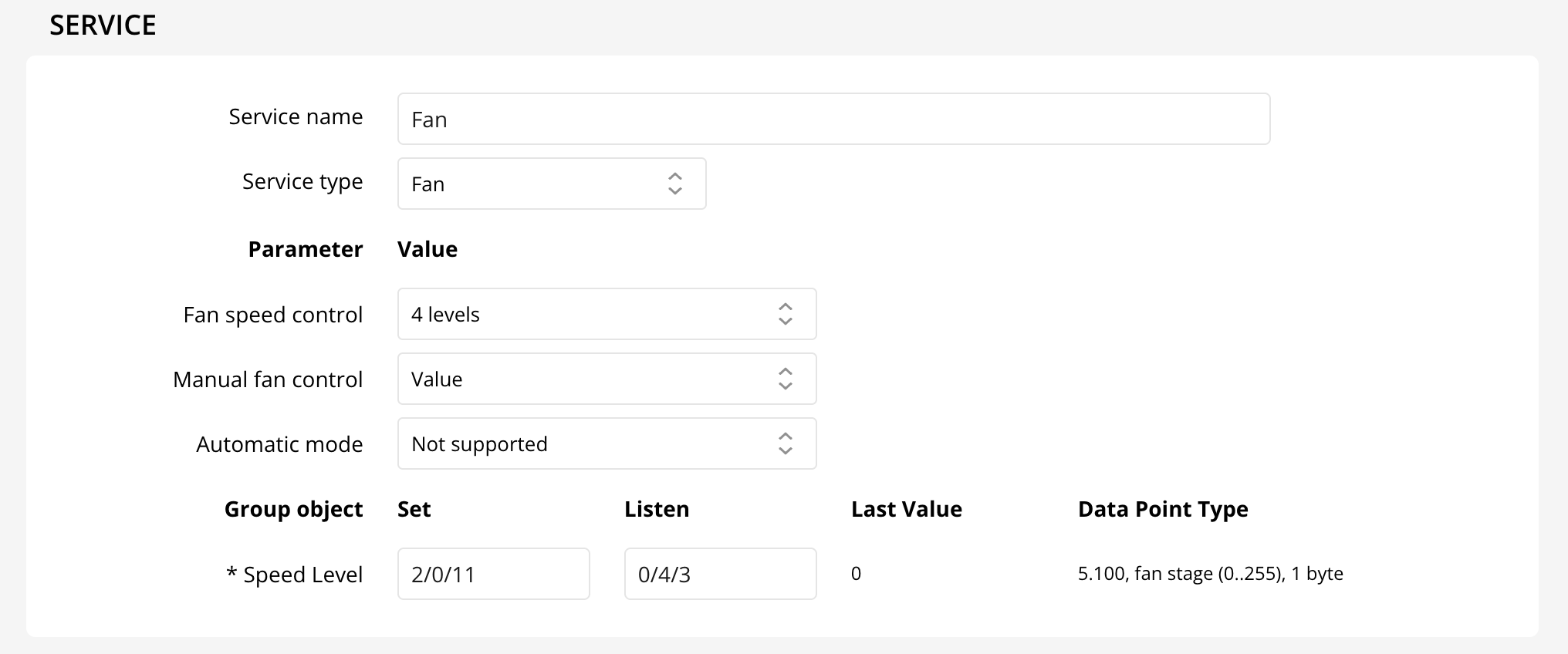

When you choose level, you can specify 1 to 4 levels. They can all be controlled by 1 byte (DPT 5.010):

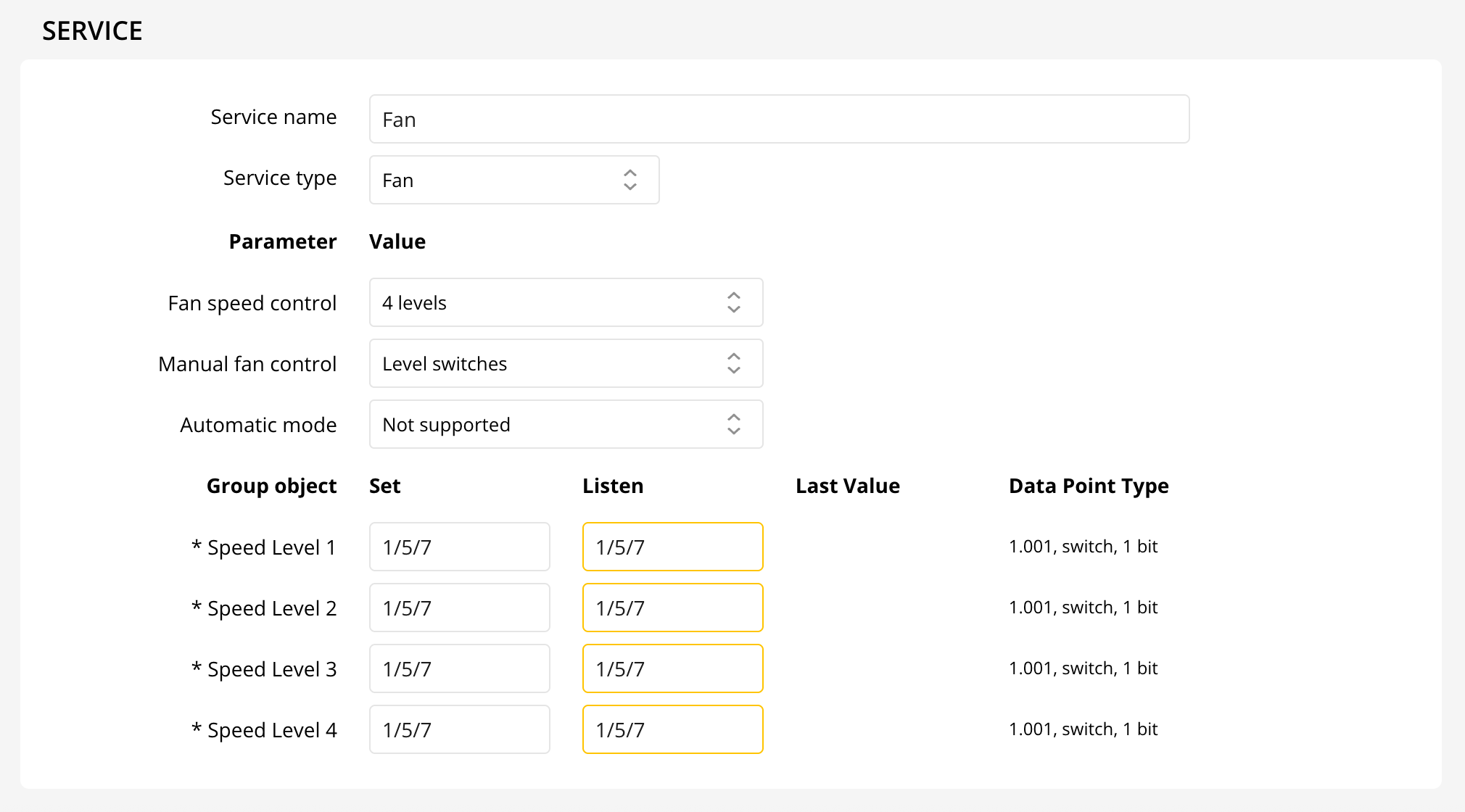

Or by a bit (DPT 1.001) individually :

Automatic Mode

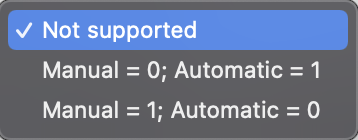

Another option is the mode:

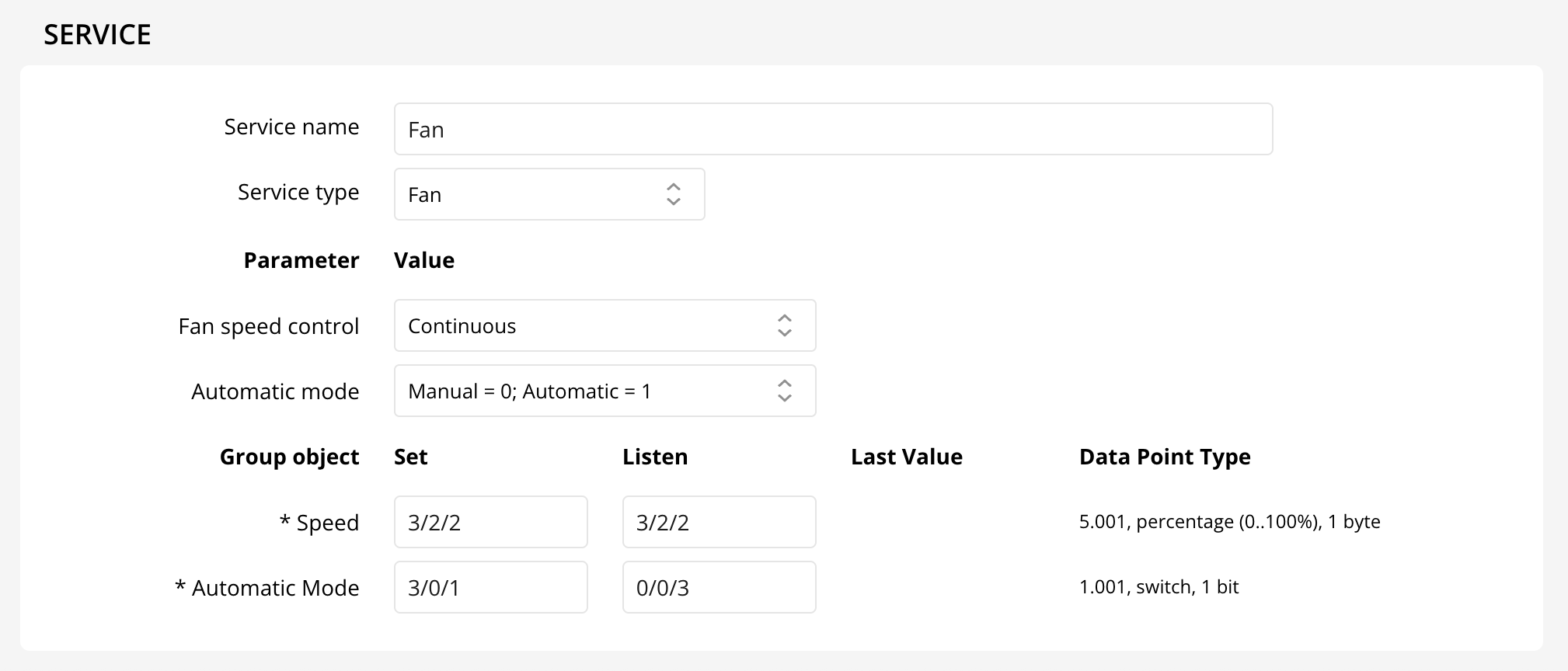

When you choose anything other than "Not supported", you need to specify another two group addresses (DPT 1.001) for set and listen of the mode:

This way you can set the automatic mode from HomeKit, for instance.

More on

Configuration
In case something is not clear or not working according to your expectation you can contact us, and we will provide instant feedback. We can be reached by email at support@thinka.eu, or by phone at +31-20-2420666
